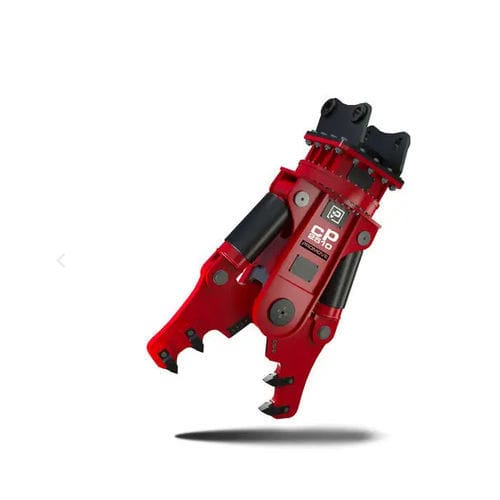

Hydraulic demolition grapple CP2510

rotaryfor primary demolitionfor secondary demolition

The multi-processing CP crushers can be considered true demolition all-rounders. With one frame-one excavator-one operator and three different types of jaws they allow: Primary breaking of reinforced and oversized concrete structures and pillars; Secondary breaking, rebars cutting and separation from processed concrete for easy recycling of materials; Cutting of metal structures like industrial buildings, pylons, train cars, scraps processing, pipes and I, H, L, U beams, heavy industrial tires. Built in Hardox, anti-wear steel, the range includes models to fit excavators from 3 to 55 tons and heavier machines in high-reach configuration. Working weight 2500 Kg Excavator weight 25/35 ton Cylinder force 110 t Cylinders working pressure 350 bar Cylinder oil flow 170/250 l/min Rotation engine pressure 100 bar Rotation oil flow (Min/Max) 10/15 l/min Max jaws opening (A) PR880 mm Max jaws opening (A) SC500 mm Max jaws opening (A) FR750 FR Kit (to be mounted on PR jaws) 740 mm Total height (B) 2650 mm Rotation 360°hydraulic
