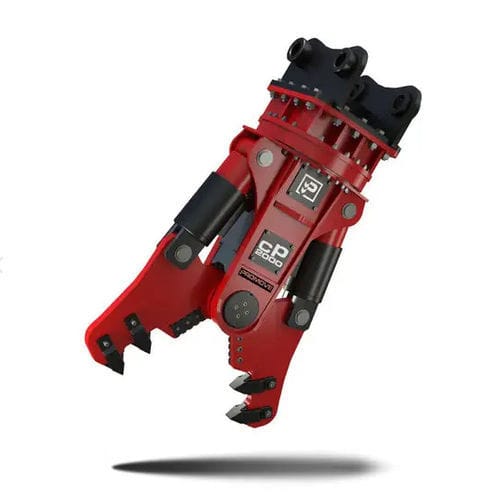

Hydraulic demolition grapple CP2000

rotaryfor primary demolitionfor secondary demolition

The multi-processing CP crushers can be considered true demolition all-rounders. With one frame-one excavator-one operator and three different types of jaws they allow: Primary breaking of reinforced and oversized concrete structures and pillars; Secondary breaking, rebars cutting and separation from processed concrete for easy recycling of materials; Cutting of metal structures like industrial buildings, pylons, train cars, scraps processing, pipes and I, H, L, U beams, heavy industrial tires. Built in Hardox, anti-wear steel, the range includes models to fit excavators from 3 to 55 tons and heavier machines in high-reach configuration. Working weight 2000 Kg Excavator weight 21/28 ton Cylinder force 90 t Cylinders working pressure 350 bar Cylinder oil flow 170/210 l/min Rotation engine pressure 100 bar Rotation oil flow (Min/Max) 10/12 l/min Max jaws opening (A) PR815 mm Max jaws opening (A) SC440 mm Max jaws opening (A) FR--- FR Kit (to be mounted on PR jaws) 740 mm Total height (B) 2230 mm Rotation 360°hydraulic
