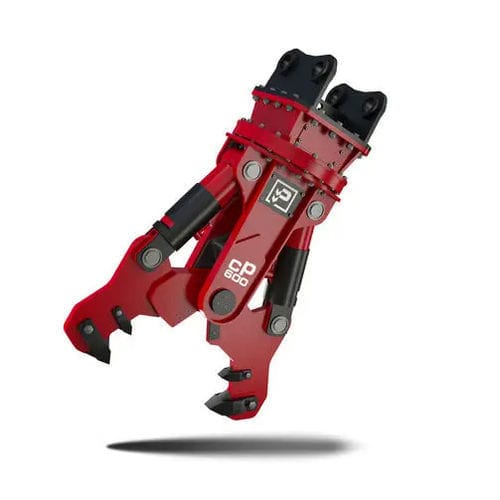

Hydraulic demolition grapple CP600

rotaryfor primary demolitionfor secondary demolition

The CP600 is the new Multi-processor designed for cutting concrete pillars, separating reinforcement iron from concrete or even cutting metal structures such as greenhouses, sheds and metal profiles. A tool designed to achieve the highest standards of versatility and efficiency in his range. Like the other multi-processors in CP series, the CP600 is also equipped with a high-performance cylinder that guarantees a great demolition and cutting power and it features a protection valve against pressure peaks and overflows, with a structure that allows a 360° rotation of the jaws. The section spreaders on the perforating teeth allow a more effective crushing. The blades are completely reversible and they can be used 4 times with great reduction of costs. Working weight 620 Kg Cylinder force 34 t Cylinders working pressure 300 bar Cylinder oil flow 60/120 l/min Rotation engine pressure 100 bar Rotation oil flow (Min/Max) 10/12 l/min Max jaws opening (A) PR580 mm Max jaws opening (A) SC300 mm Max jaws opening (A) FR--- FR Kit (to be mounted on PR jaws) 540 mm Total height (B) 1670 mm Rotation 360°hydraulic
