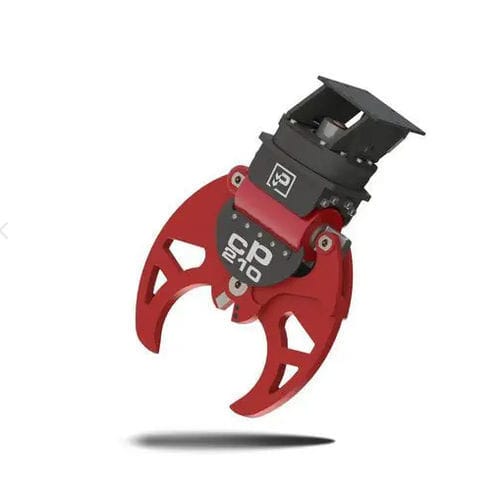

Hydraulic demolition grapple CP 210

rotaryfor primary demolitionfor secondary demolition

The multi-processing CP crushers can be considered true demolition all-rounders. With one frame-one excavator-one operator and three different types of jaws they allow: Primary breaking of reinforced and oversized concrete structures and pillars; Secondary breaking, rebars cutting and separation from processed concrete for easy recycling of materials; Cutting of metal structures like industrial buildings, pylons, train cars, scraps processing, pipes and I, H, L, U beams, heavy industrial tires. Built in Hardox, anti-wear steel, the range includes models to fit excavators from 3 to 55 tons and heavier machines in high-reach configuration. Working weight 180 Kg Carrier weight 1,5/3 ton Oil flow 20/30 l/min Working pressure 200 bar Rotation oil flow (Min/Max) 5/10 l/min Rotation engine pressure 40 bar Cylinder force 40 t Max jaws opening (A1) PR328 mm
