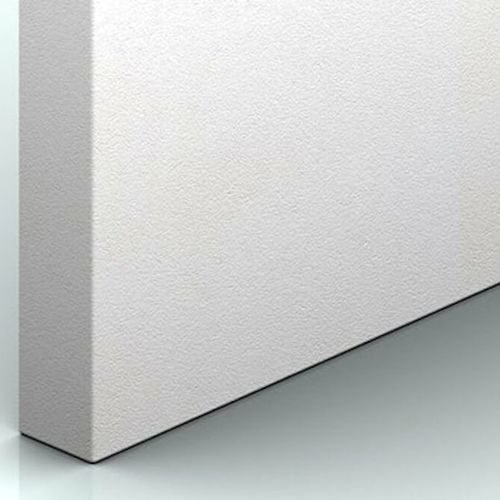

Thermal insulation PROMATECT®-100

calcium silicatepanelinterior

PROMATECT®-100 comprises autoclaved calcium silicate spheres (PROMAXON® is a synthetic hydrated calcium silicate in spherical form) bound in a mineral matrix. PromaX® technology provides excellent fire performance in most applications. PROMATECT®-100 is off-white in colour. One face is smooth and ready to form a finished surface, able to receive almost any form of architectural/finish treatment. The reverse face is sanded. PROMATECT®-100 is resistant to the effects of moisture and will not physically deteriorate when used in damp or humid conditions. Performance characteristics are not degraded by age or moisture. However, PROMATECT®-100 is not designed for use in areas subject to continual damp or high temperatures. PROMATECT®-100 is for internal applications only. Applications: Protective membrane under steel or concrete structures. Ceiling. Partition. Benefits: • Single layer systems for walls and ceilings with high fire resistance • High level of finish • Most types of architectural finishes can be applied • Non combustible A1 Reaction to fire: A1, non-combustible Use Category: Z2 Approx. Alkalinity (pH): 7 pH Moisture Content Min (%): 1 % Moisture Content Max (%): 3 % Approx. Moisture Diffusion Resistance Min (μ): 3 Approx. Thermal Conductivity @ 20 °C (W/m°K): 0.285 W/m K Bending Strength Longitudinal (N/mm²): 5 N/mm² Tensile Strength Longitudinal (N/mm²): 1.21 N/mm² Compressive Strength (N/mm² perpendicularly to the board surface): 6.6 N/mm² Storage Conditions: Store in a dry and well-ventilated space, under cover, on a flat surface.
