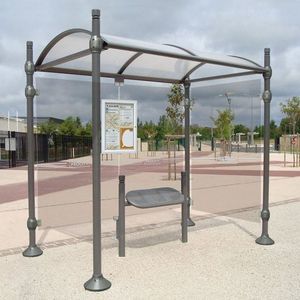

Glass bus shelter Milan

steelaluminiumwith bench

A bus shelter with contemporary lines. It's confident look fits perfectly into any environment. Two lengths: 2500 or 5000 mm. Total depth: 1600 mm. Square posts: 80 x 80 mm steel tubes on base plates. Under roof height: min. 2275 mm, max. 2480 mm. Roof: 10 mm anti-UV-treated cellular polycarbonate panels. Roof frame: galvanised steel tube, 60 x 60 mm. Rear and side cladding: 8 mm safety glass. Cladding attachments: pinch-grip system made from Zamak alloy with brushed finish. Timetable display case: 750 x 550 mm (4 A4) x 30 mm deep, in anodised aluminium. Advertising space: light box (1710 mm x 1160 mm display area) or “2000” display case (1750 mm x 1200 mm display area). Finish: galvanised and painted in our colours. Installation: on base plates. Optional: additional front and rear wind protection panels available.
