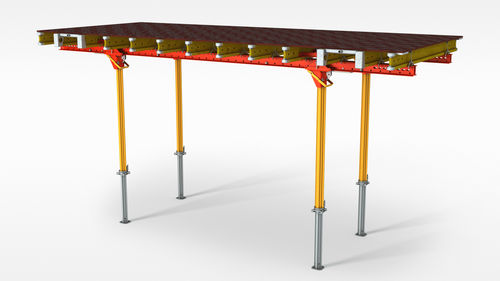

Modular formwork VARIODECK

metalfor floor

VARIODECK is the ideal and safe solution for slab edge areas when panel slab formwork is to be used for the inner area. Slab areas of around 15 m² and up to 50 cm thick can be formed with the table. VARIODECK is quickly moved into the next storey in each case with a single crane lift. By means of the swivel head, the 4 props can be easily folded in the longitudinal direction of the table, e.g. for moving under beams. Quickly ready for use through the provision of pre-assembled tables – during assembly, only the lower part of the swivel head must be attached to the slab prop High load-bearing capacity with longitudinal-positioned steel walers which allow large cantilevers or can accommodate heavy prefabricated parts Flexibly adaptable by continuously moving the Table Swivel Head ± 15 cm Pre-assembled slab tables in 4 standard sizes (4.00 m x 2.15 m | 4.00 m x 2.65 m | 6.00 m x 2.15 m | 6.00 m x 2.65 m) For slab thicknesses up to 50 cm (with 4 MULTIPROP slab props); larger slab thicknesses or dimensions with additional support or PERI UP shoring Horizontal transportation throughout the storey using the Table Trolley, Table Lift or Transportation Wheel on the shoring Moving storey to storey with the crane and Table Lifting Fork Width compensation of up to 50 cm through protruding cross beams which serve as supporting surface for the formlining Can also be used as an edge table with guardrail holders and guardrail posts without any modififi cation of the prop positions Use as a safety scaffold in accordance with DIN 4420
