To find out more about the technology behind Ecofire water-heating pellet stoves please go to the Heating Systems section.

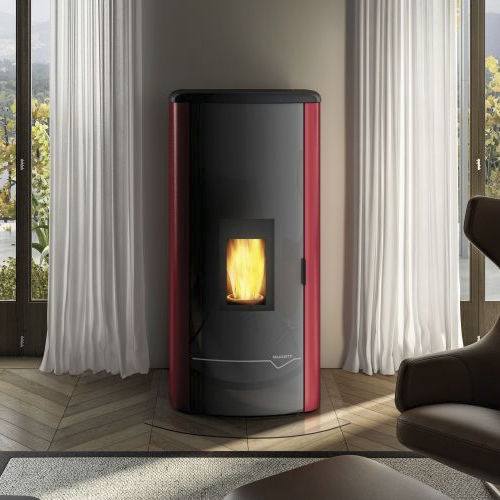

Hydronic stove with a cast iron top and glass door.
More in-depth info
• sealed stove, can draw its combustion air directly from outdoors
• it can draw its combustion air directly from outdoors
• two doors, a design one in curved glass and a technical one provided with Balanced door system
• ceramic glass (800°) featuring our air wash system
• integrated hydronic unit composed of a circulation pump, a safety valve, a closed expansion tank and a manometer
• integrated anti-condensation valve
• digital, touch screen control panel
• operating hours can be programmed on a daily and weekly basis
• integrated interface with external thermostat or for connection to the storage tank
• designed for our Connection Box
• firebox with 8 flue gas tubes with turbulators
• burn pot in cast iron
• Combustion Dynamic Control preserves the fuel and combustion air balance, ensuring utmost heat efficiency in all operating conditions
• large ash pan
Technical details
Pellet burning
Nominal heat output 15.37 kW
Water heat output 14.05 kW
Efficiency 94.96 %
Maximum burn time 25 h
Fuel hopper capacity 25 kg
Hourly fuel consumption 1 - 3.302 kg/h
Flue gas outlet ø 8 cm
