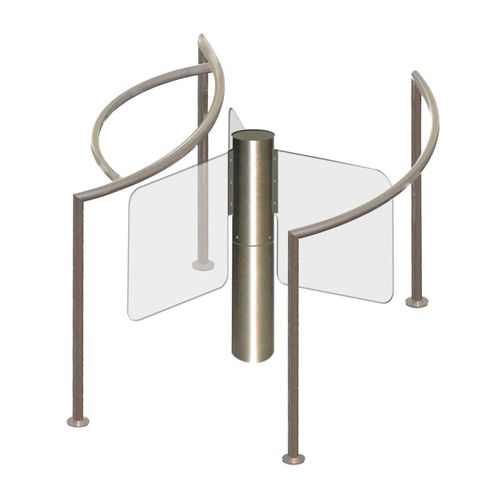

Half-height turnstile OSG 131 CS

for access controlstainless steelglass

It is a half-height turnstile model with 3 wings, diameter 168 mm, cylindrical column body, motor that can operate in two directions. It has been specially designed for stylish places such as Plaza. (131 CS) is the most stylish glass half-height turnstile you can find in the market, but it can operate indoors and outdoors for many years without any problems. It has a stylish and modern appearance thanks to its ASI 304 quality stainless steel structure, it can be installed easily and quickly thanks to the mounting kit camouflaged in the foot, ( 131 CS ) decorates your space with its modern lines and aesthetic structure, and also offers a very elegant solution for welcoming and organizing, controlling and recording your visitors. ENERGY: 220 VAC 50/60 Hz Optional 110 VAC POWER CONSUMPTION: Maximum 25 Watt, Minimum 10 Watt INDICATOR: Two different transfer sticker labels are offered as standard Stop, Pass, sign on transparent plexiglass. DRIVING: After the authorization signal is received, the mechanism switches to the open position in normal passages except for the power cut, the motor is activated as soon as the person touches the turnstile arm, the person makes the transition by means of the motor without requiring any force, and the person smoothly cycles 120 degrees after the transition. it is damped again by the engine. WING DIMENSIONS: Thickness 10 mm transparent plexi wing length 325×820 mm is offered as standard, it can be changed according to demand. CONTROL: There is a dry contact data output in the passed direction, It can be easily connected to a dry contact, 12 VDC, 24 VDC or Various access control unit and other peripheral units for transition triggering.
