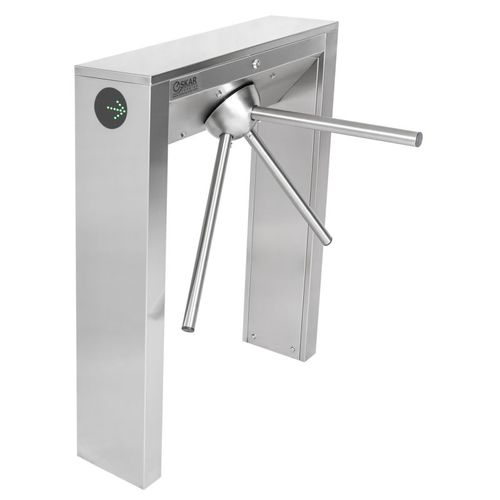

Tripod turnstile OTT 640 D

for access controlstainless steelfor public building

It is a narrow frame tripod waist type turnstile with double legs. It is designed to meet crowded groups such as personnel, visitors, or customers in various social areas such as plaza, subway, factory, prison, table d'hôte or open buffet restaurants, public WC entrances, etc. ( 640 D ) can operate indoors and outdoors for many years without any problems, exhibits a stylish and modern appearance thanks to laser-cut joint lines, and can be installed easily and quickly thanks to the mounting kit camouflaged in the foot. (640 D) with its modern lines and aesthetic structure, offers a very economical and stylish solution for welcoming and organizing, controlling and recording your visitors. ENERGY: 220 VAC 50/60 Hz Optional 110 VAC POWER CONSUMPTION: Maximum 25 Watts Minimum 10 Watts INDICATOR: The LED indicator glass is designed to be zero to the body surface. It refers to the access control of the system. The LED indicator is offered as standard in all Oskar LED indicator turnstiles, and it can also be produced in different forms optionally. CONTROL: There is a dry contact data output in the passed direction. The dry contact for transition triggering can be easily connected to 12 VDC, 24 VDC or various access control units and other peripherals. In addition, the direction selection can be easily adjusted by the users via the dip switches on the board. Turnstile allows free passage in both directions in case of power failure, this is a legal obligation, no other system is optionally offered without the written and official signature of the customer, there is also an extra contact input for emergencies (eg fire, earthquake, etc.).
