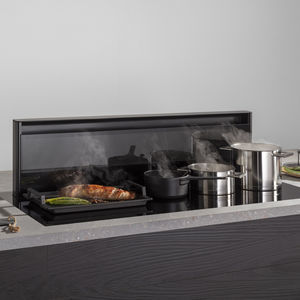

Downdraft extractor Panorama Pro
commercialductlessClass C

Downdraft extractor - Panorama Pro - NOVY N.V. - commercial / ductless / Class C
Downdraft extractor - Panorama Pro - NOVY N.V. - commercial / ductless / Class C
Add to favorites
Compare this product

Characteristics

Type
countertop
Market
commercial
Ventilation
ductless
Energy class
class B, Class C
Color
black
Noise level

35 dB, 70 dB

Maximum airflow

1,009 m³/h, 1,530 m³/h
(35,632 ft³/h, 54,031 ft³/h)

Width

1,100 mm
(43 in)

Depth

165 mm
(6 in)

Height

760 mm
(30 in)

Description

• Direct extraction at source, thanks to the adjustable height: 10 cm, 20 cm, 30 cm • 4 cooking zones + practical functions • Extra large cooking surface of 120cm • Preset auto-function • Semi-transparent extraction tower disappears invisibly into the hob • Discrete and elegant design • Easy to maintain • Surface and flush installation possible Energy label Energy Efficiency class (EEIhood): B Annual Energy Consumption (kWh/year) (AEChood): 65,4 Lighting Efficiency class (LEhood): Not applicable Fluid Dynamic Efficiency class (FDEhood): B Grease Filtering Efficiency class (GFEhood): C Functions and features Motor: Integrated Number of motors: 3 Sound absorber: Integrated Recirculation: Optional InTouch function: Not applicable Auto stop: Yes Delayed switch off: Yes Delayed switch off (minutes): 30/10 Tower height (cm): 10, 20, 30 Number of grease filters: 2 Grease filter cleaning indication: Yes Recirculation filter cleaning indication: Yes Diameter duct (mm): 222x89
