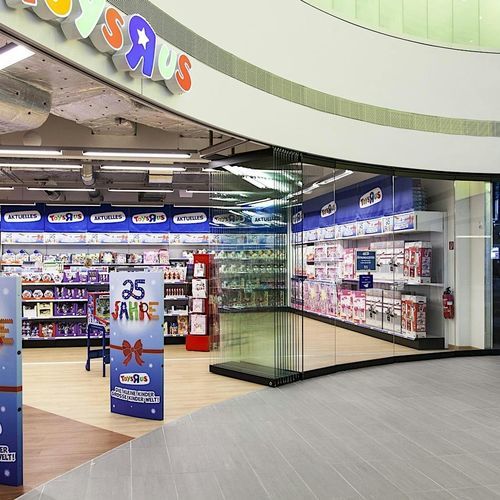

Pivoting/sliding partition HSW75

sliding and stackingglasscommercial

Transparent Aesthetics Limitless Flexibility • Customizable stacking • Unlimited spans • Standard sizes up to 4' 1" (1250 mm) in width and 10' 6" (3200 mm) in height for sliding panels Single Track Offers Total Customization Create an unlimited span of top-hung panels which are able to easily navigate with single handed operation through multiple angle changes from 90° to 180°. Optimize space management or to solve unique design challenges, stacking options and minimal parking bays can be designed with total customization. Unlimited Spans, Customizable Stacking A unique combination of aesthetics, flexibility, and ingenuity make the HSW75 our most advanced frameless glass wall ever 3 15/16" continuous rail for outstanding aesthetics The HSW75 system comes standard with a 3 15/16" (100 mm) continuous top and bottom horizontal rail –even on single action sliding panels– allowing for a beautiful aesthetic and maximum glass. Customized rail options are available in increments of 3/16" (5 mm) from 5 1/4" (133 mm) to 7 13/16" (198 mm). To meet ADA requirements, two options are offered: a 10" (254 mm) bottom rail or a 4 3/4" (120 mm) chamfer bottom rail. Taller Heights and Wider Widths: Standard HSW75 comes in sizes up to 4' 1" (1250 mm) in width and 10' 6" (3200 mm) in height for sliding panels. For all single/double action sliding panels, sizes available are up to 3' 3" (1000 mm) in width and 10' 6" (3200 mm) in height. For single/double action end panels (non-sliding), sizes available are up to 3' 7" (1100 mm) in width and 10' 6" (3200 mm) in height.
