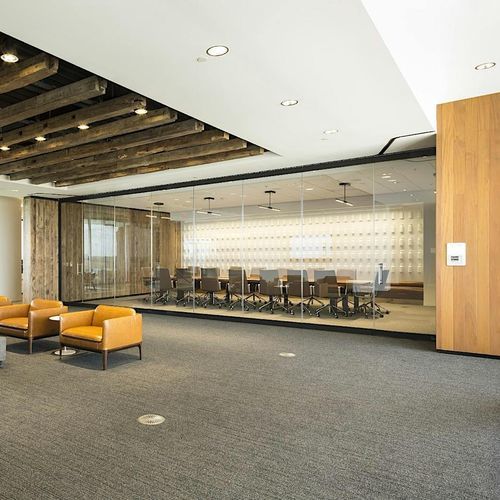

Sliding partition PrivaSEE

aluminumglasscommercial

Transparent Aesthetics Limitless Flexibility • PrivaSEE is an acoustically rated unit STC 36 frameless system • Unit heights up to 10' 6" (3200 mm) and unlimited door panels are possible • No floor track required Sound Control with an All Glass Aesthetic NanaWall PrivaSEE is the only all glass single track sliding system specifically engineered for enhanced acoustical separation. PrivaSEE provides better sound buffering than many fixed all glass partitions. Unit STC 36 Acoustically Rated Patented (Patent No. US10590694) PrivaSEE has been independently tested and rated to an accomplished Unit STC of 36 and OITC of 30. Sound Enhanced Laminated Glass Standard to PrivaSEE is 1/2″ (13 mm) laminated glass with a sound enhanced interlayer providing reduced sound transmission. Additional options include clear laminated (unit STC of 34) and clear tempered (unit STC of 32). No Floor Track Required PrivaSEE uses adjustable eccentric floor sockets rather than a floor track keeping a clean aesthetic. Swing Door with Offset Hinge For easy access, PrivaSEE configurations come standard with a single action end panel equipped with a floor closer at the side jamb. The swing panel with offset hinge allows for a maximum 180° swing plane. System stacking and swing panel can be provided at either one end or both to accommodate traffic patterns. One Hand Operation German engineered roller system ensures quiet, smooth, and trouble free single hand operation by using an “intelligent” guiding system.
