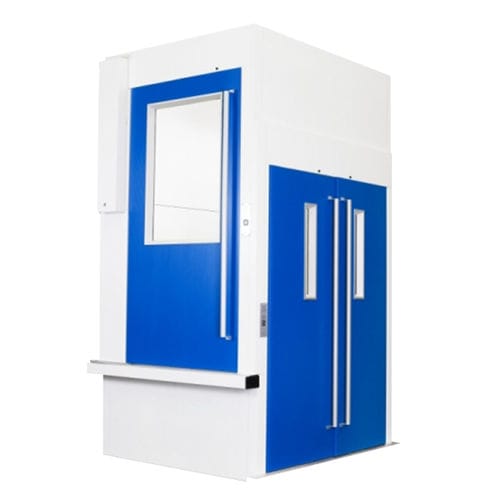

Electric elevator GL 800

for hospitalhomecommercial

Our proven platform lift with screw drive for transporting people and goods. The GL 800 lift is intended for people and heavier goods traffic indoors and outdoors. Areas of use: Industries, workshops, shops, restaurants, pubs, hospitals, hotels, etc. Standard equipment Driveline - Screw drive Frequency control - Standard Lifting capacity - 800 kg Lifting height - 0-13 m Lifting speed - 0.15 m/s Electrical connection - 3-phase 400/240V 20A Platform - 1100×1700 mm (Standard) (Can be adjusted to a maximum of 2m²) Shaft - 1500×1800 mm Pit everything. ramp - 70 mm Doors - A1 with electric lock, 900×2000 mm Surface coating - Plastic foil-covered hot-dip galvanized sheet Color - Dobel 1072 broken white Optional Glazed shaft - 3 pages Glazed doors - Yes Fire rated doors - Yes Auth. door opener - Yes Emergency phone Safeline MX2 - Yes Stainless - Yes Other color - Other Dobel color Key control - Yes School governance - Yes UPS backup - Std Remote control. infralink - Yes Doors with different widths & heights - Yes Different platform width - Yes, max m² Outdoor variant - Yes
