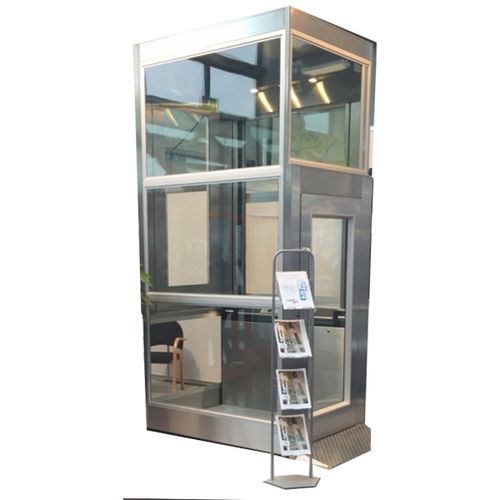

Electric elevator PL 501

homeindoor

This is the latest product development in the family of platform lifts for indoor use. The lift is, among other things, equipped with a belt drive that enables four glazed sides. Advantages: Small outer dimensions. Low noise level. Can be fitted with glass on all sides, Frequency control.. Easy installation. Advanced pre-assembly. Reasonable installation cost. Call with Impulse run. Standard equipment Driveline - Belt drive Frequency control - Standard Lifting capacity - 500 kg Lifting height - 0-15 m Lifting speed - 0.15 m/s Electrical connection - 1-phase 240V 10A Platform - 1100×1500 mm (Standard) 1100×1700 mm (Macro) (can be adjusted to a maximum of 2m²) Shaft - 1300×1600 mm Pit everything. ramp - 50 mm Doors - A3 with electric lock, 900×2000 mm Surface coating - Plastic foil-covered hot-dip galvanized sheet Color - Dobel 1072 broken white Optional Glazed shaft - 4 pages Glazed doors - Yes Fire rated doors - Yes Auth. door opener - Yes Emergency phone Safeline MX2 - Yes Stainless - Yes Other color - Other Dobel color Key control - Yes School governance - Yes UPS backup - Yes Remote control. infralink - Yes Outdoor variant - No
