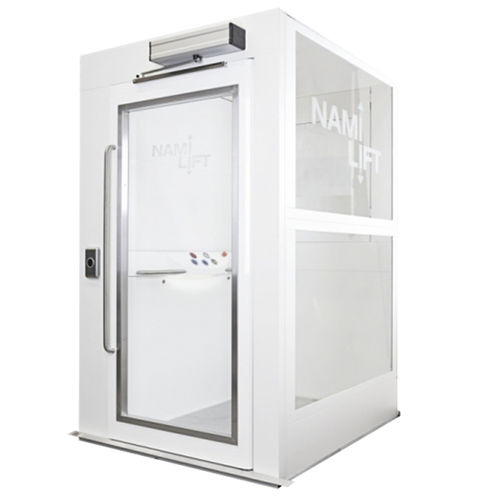

Plattfrom's lift PL 500 intended for passenger and light goods traffic. Areas of use: Residences, Schools, daycare centers, offices, shops, restaurants, hotels, etc.
Standard equipment
Driveline - Screw drive
Frequency control - Standard
Lifting capacity - 500 kg
Lifting height - 0-13 m
Lifting speed - 0.15 m/s
Electrical connection - 1-phase 240V 16A
Platform - 1100×1600 mm (Standard)
1100×1700 mm (Macro) (can be adjusted to a maximum of 2m²)
Shaft - 1400×1700 mm
Pit everything. ramp - 50 mm
Doors - A1 with electric lock, 900×2000 mm
Surface coating - Plastic foil-covered hot-dip galvanized sheet
Color - Dobel 1072 broken white
Optional
Glazed shaft - 4 pages
Glazed doors - Yes
Fire rated doors - Yes
Auth. door opener - Yes
Emergency phone Safeline MX2 - Yes
Stainless - Yes
Other color - Other Dobel color
Key control - Yes
School governance - Yes
UPS backup - Std
Remote control. infralink - Yes
Different platform width - Yes, max width/length: 1200×1700 mm
Outdoor variant - Yes
