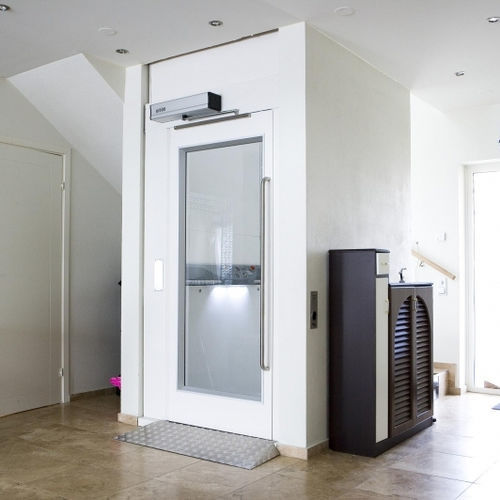

Our proven platform lift with screw drive for passenger and light goods traffic. The PL 400 lift is intended for passenger and light goods traffic. Areas of use: homes, schools, daycare centers, offices, shops, restaurants, hotels, etc.
Standard equipment
Driveline - Screw drive
Frequency control - Standard
Lifting capacity - 400 kg
Lifting height - 0-13 m
Lifting speed - 0.15 m/s
Electrical connection - 1-phase 240V 16A
Platform - 850×1250 mm (Standard)
1100×1500 mm (can be adjusted to a maximum of 1.6m²)
Shaft - 1150×1350 mm
Pit everything. ramp - 50 mm
Doors - A1 with electric lock, 800×2000 mm
Surface coating - Plastic foil-covered hot-dip galvanized sheet
Color - Dobel 1072 broken white
Optional
Glazed shaft - 3 pages
Glazed doors - Yes
Fire rated doors - Yes
Auth. door opener - Yes
Emergency phone Safeline MX2 - Yes
Stainless - Yes
