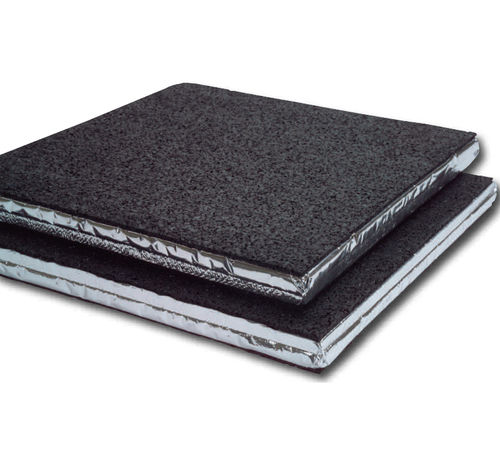

Thermal insulation RP-B2-S

mineralpanelinterior

Vacupor® RP-B2-S is a microporous insulation material which has an extremely low coefficient of thermal conductivity, i.e. with very good insulating properties. Vacupor® RP-B2-S consists of inorganic oxides. The main constituent is fumed silica, the other components are opacifiers for minimizing infrared radiation, and fiber filaments as reinforcing fillers. Vacupor® RP-B2-S is approved by DIBT under the certification number Z-23.11-1662.The approval is valid for construction applications DAD, DAA, DZ and DEO, according to standard DIN 4108-10 and prefabricated façade panels with insulated glass character. Vacupor® RP-B2-S conforms to building material class E (B2). The test of behaviour in case of fire according DIN 4102-1, May 1998, building material class B2; test certificate no. H.3-145/07 and H.3-146/07, was issued by the Forschungsinstitut für Wärmeschutz e.V. München. The core material of Vacupor® RP-B2-S is not flammable and is classified A1 according to DIN ISO EN 13501-1. Vacupor® RP-B2-S is heat sealed in a multilayer vacuum metalised film. The very low internal pressure and the microporous panel core enable it to reach extremely low thermal conductivity values. Typical applications Vacupor® RP-B2-S is successfully used as insulation material in the following areas: ● Terrace insulation ● Cold storage floor insulation ● Floor insulation ● Flat roof insulation
