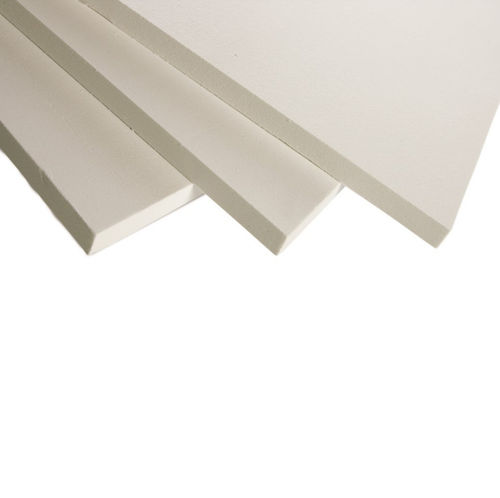

Rigid insulation panel Prime

thermalmineralinterior

Superwool Prime Board is manufactured using Morgan's newest low biopersistent fibre chemistry with a classification temperature of 1300°C (2372°F). The use of the patented low-shot fiberisation technology, ultra-pure raw materials and state of the art forming process offers excellent thermal and physical features to this board, coupled with very high-temperature capability. As a result, Superwool Prime Board has high refractoriness and excellent non-wetting characteristics. In addition, Superwool fibres provide excellent stability and resistance to most types of chemical attacks. Low thermal conductivity, superior mechanical properties and high-temperature stability offer unmatched performance and reliability to the Superwool Prime Board. If wet by water, steam or oil, thermal and physical properties are restored upon drying. Superwool Prime Board is ideally suited to various applications and is available in multiple dimensions. The continuous use temperature depends upon the application. We encourage contacting your regional Morgan Advanced Materials - Thermal Ceramics representative to support you with your specific application requirement. Features • Rigid, self-supporting, fibre insulating board • Very low thermal conductivity • Opportunity to reduce backup insulation thickness up to 50% when replacing insulating firebrick or castable • Low heat storage Applications • Furnace, Kiln, and Oven hot face and backup linings • Insulation backup to: − Firebrick and insulating firebrick − Refractory monolithics utilizing rammed linings or shapes • Flue and Chimney linings, Hot gas duct lining
