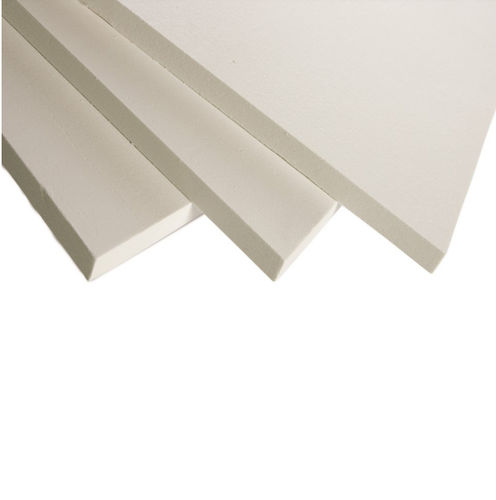

Panel insulation

thermalsyntheticmineral

I-2300 is an insulating material produced by blending high purity, synthetic alumina-silica fibers with high purity silica binders. The high temperature capability is enhanced by employing ammonia stabilized colloidal silica rather than a sodium stabilized product. I-2600 is an insulating material produced by blending aluminosilicate fibers, alumina fibers and silica fibers with high purity silica binders. The alumina fibers form a matrix within the material, and give it high temperature capability. I-2800 is an insulating material produced by blending aluminosilicate fibers, alumina fibers and silica fibers with high purity silica binders. The polycrystalline alumina fibers form a matrix within the material, and give it high temperature capability. The high temperature capability is further enhanced by employing ammonia stabilized colloidal silica rather than sodium stabilized product. I-A5 is an economical, ultra high temperature insulating material produced by blending alumina-silica fibers, alumina fibers and silica fibers with high purity silica binders. The alumina fibers form a matrix within the material, and give it high temperature capability. The high temperature capability is further enhanced by employing ammonia stabilized colloidal silica rather than sodium stabilized product. Features • Enhance mechanical properties with one of our post treatments using ultra-high purity ammonia stabilized colloidal silica • No organic binders • Complex shape capability • Low thermal conductivity and minimal heat storage Applications • Bullnose tiles • Burner blocks • Combustion chamber construction
