Thermal insulation NT mineralpanelexterior
Add to favorites
Compare this product
Characteristics
- Type
- thermal
- Material
- mineral
- Format
- panel
- Location
- interior, exterior
- Use
- for facades, for floor, patio
- Technical characteristics
- non-flammable
- Fire Class
- Euroclass A1
- Options
- lightweight
- Thermal conductivity
3.63 W/(m.K), 3.66 W/(m.K), 3.75 W/(m.K), 4.25 W/(m.K), 8.7 W/(m.K)
- Thermal resistance
Min.: 0.19 m²K/W
Max.: 0.94 m²K/W
- Length
600 mm, 1,000 mm, 1,200 mm
(24 in, 39 in, 47 in)- Width
250 mm, 300 mm, 500 mm, 600 mm, 1,000 mm
(10 in, 12 in, 20 in, 24 in, 39 in)- Thickness
10 mm, 15 mm, 20 mm, 25 mm, 30 mm
(0.39 in, 0.59 in, 0.79 in, 0.98 in, 1.18 in)
Description

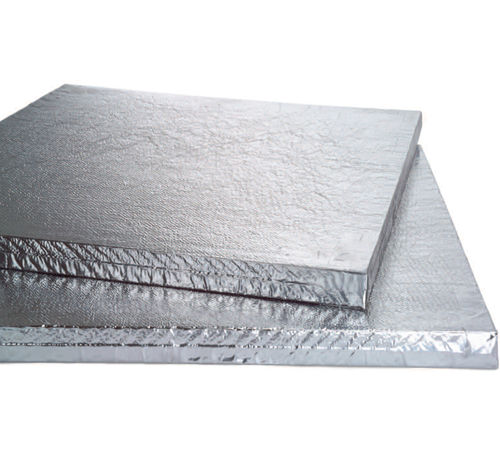

Vacupor® NT is a microporous insulation material which has an extremely low thermal conductivity coefficient giving it very good insulating properties.
Vacupor® NT consists of inorganic oxides. The main constituent is fumed silica, the other components are opacifiers for minimizing infrared radiation, and silicates. Vacupor® NT (core material) is not flammable and meets the requirements of IMO FTPC part 1 and DIN ISO 4102 part 1, A1.
Vacupor® NT is heat sealed under vacuum in a multilayer vacuum metalised film. The very low internal pressure and the microporous panel core enable it to reach extremely low thermal conductivity values.
Application
Vacupor® NT was specially developed for applications in vacuum insulation technology. The low density and the specially developed IR opacifiers contained in these grades greatly reduce the thermal conductivity of Vacupor® NT Systems.
Catalogs
Vacupor® NT
3 Pages
