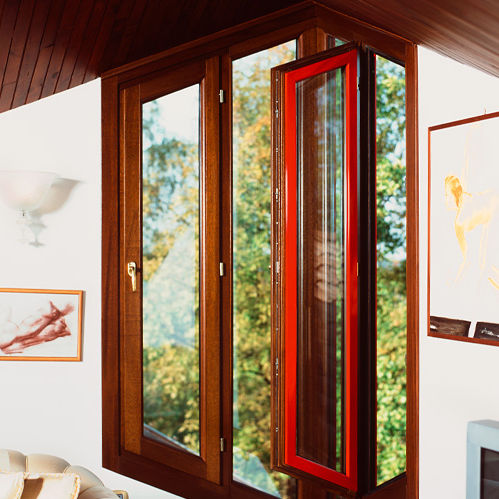

Folding window EUROMIX

woodenaluminumdouble-glazed

Euromix windows and doors are available in Mahogany Meranti and Chestnut Sungkay wood with outside cladding in aluminium with different finishes: anodized, RAL colours, special finishes as pulver, metalized and wood grain. All of this is indicated in our finishes catalogue. The wood section is 70x54mm for the frame and 93x56 for the sash; both of them are in laminated wood made of 3 layers, pre-dried and glued together with D4 glues, insensitive to humidity. Here below we quote the results obtained in the tests made on a 2 sash tilt and turn Euromix window in laminated Mahogany Meranti with aluminium cladding. Tests have been carried out according to the norm 14351-1, by the notified laboratory n. 1600 CERT, Certification and Test Centre of Treviso Tecnologia. • Air permeability Class 4 • Watertight Class E 900 • Resistance to wind load Class C5 • Heat transmission with standard glass 4/15/4 Low E. and Gas Argon Ug=1,1 W/m2k = Heat transmission window up to Uw=1,34 W/m2k • Heat transmission with glass Ug=0,5 W/m2k = Heat transmission window up to Uw=0,88 W/m2k Sound insulation tests have been carried out by the Giordano Institute n. 217695 with glass 4 Low E./15 Argon/4: Rw=37dB R.d.p. with glass 4+4 acoustic plastic 0,5/15 Argon/4+4 pvb 0,76: Rw=43dB R.d.p.
