Door canopy FORATA

for windowaluminumsteel

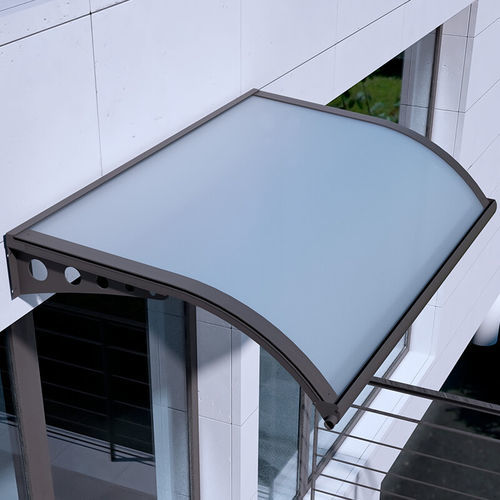

Aluminum canopy ideal in buildings with minimal and modern design, thanks to the inclusion of perforated brackets. The slightly curved shape protects windows or doors and adapts to different situations: it can cover stairs with slope variations, outline the buildings borders with external and internal edges or we can provide cut out in case of drainpipe. Its little brackets of only 20 cm solve every installation problem and allowing the installation even in contexts with limited space. Frame. Frame entirely made of aluminium alloy UNI 6060 T5 painted with polyester powder paint. The canopy consists in an aluminium frame to hold polycarbonate plates connected by steel brackets and front gutter with side water path. The structure is polyester powder coated for outdoor use and is complete with front drip tray and side water drain. Canopy certified by TÜV SUD for loads up to 170 daN/mq. Cover. The roof is covered with 4 mm solid polycarbonate sheets, with hermetic seals and sheet holder profiles. The polycarbonate in available in several colours. Otherwise, if you prefer a blind cover, you can choose composite panels of aluminium and polyethylene, available in white 9016.
