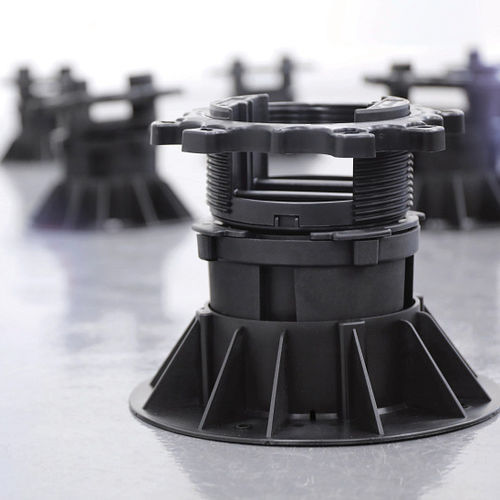

Plastic raised floor pedestal DuoLift®

water-repellentfor patioadjustable

The ultimate support system for your frame. The DuoLift® joist pedestal system was designed to make installation significantly easier and to ensure successful outcomes. Providing substantial height flexibility within four stackable components, DuoLift® removes the common problem of having to order varying height pedestals for a single area. Height-adjustable from 15mm, DuoLift™ makes accurate height-setting easy, and is self-levelling from 35mm upwards. With DuoLift®, you can quickly achieve a level support system that won’t rot, split or host algae. DuoLift®’s range of feet, pedestals, risers and cradles are even suitable for use in damp environments. Providing an exceptional height range of 45mm, from 15-60mm, the DuoLift® Joist Cradle enables precision height adjustment with 5mm markings on the side and each quarter turn of the adjustment ring representing a 1mm rise or fall. The Joist Cradle allows the installer to adjust the height whilst the joist is in place, locking tabs provide a secure finish once correct height has been determined. Adding 20mm to the height of the supports, the DuoLift® Self-levelling Joint provides easy and effective levelling of a subframe up to 5º, ready for decking installation. Suitable for standing directly onto a solid substrate, or for providing a joint for a higher support. The Riser component of the DuoLift® system increases the height in increments of 45mm. It is capable of sitting directly onto a solid substrate under the Joist Cradle and Self-Levelling Joint or forming part of a higher stack with a foot beneath.
