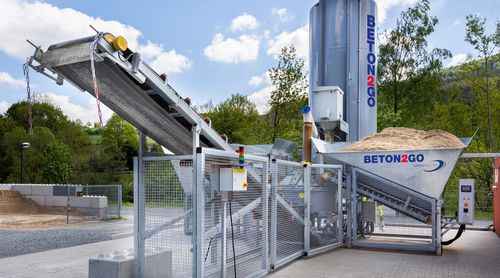

Fixed concrete mixing plant MA series

automatic

The modular design of our concrete filling stations allows for custom-tailored configuration that meets your requirements and spatial conditions to the “T”. The heart of the system is the mixing module. A planetary mixer with a mixing capacity of 0.5 m³ or 1 m³ per batch is available. You determine the size of your cement silo. You can opt for a standard silo of 30 m³ or enlarge the volume to 33 m³. The standard silo is equipped with a cement dust filter and a level measurement. The size and number of storage hoppers are also custom-tailored to match your requirements. You can choose between two or four chambers with 3 m³ each. Optional attachments expand the volume to 4 m³ each. Loading is possible with shovel widths of up to 3,200 mm, expandable to 3,500 mm. The discharge conveyor has a standard length of 8 m and ends with a discharge height of 2.90 m. Optionally, the conveyor belt can be extended to 11 m; then it achieves a discharge height of 4 m.
