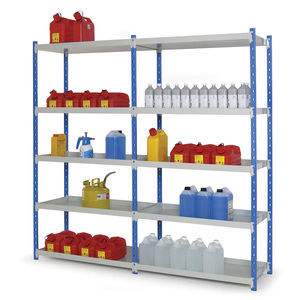

Storage shelving EPSIVOL

for medium-heavy loadsstandardhorizontal

For storing semi-heavy or bulky items with restricted access (hazardous products, high-value goods, tools, etc.). Scalable, the mesh Epsivol can be adapted to suit new storage requirements by adding additional levels (you must check the load capacity per bay, please ask). Modular so you can easily mix Epsivol mesh and standard Epsivol in the same bay to create some spaces with easy access and others with secure access. The optional containment tray is ideal for protecting the floor against any leakages of non-corrosive pollutants. EPSIVOL MEDIUM-DUTY SHELVING with 2 or 3 storage tiers composed of step beams and wire shelves MESH SHELVES 100x50 mm, wire diameter 5 mm, electrozinc finish. BACK AND SIDE WALLS AND ROOF in 50x50 mm mesh PADLOCKABLE DOUBLE DOOR for maximum security OPTIONAL CONTAINMENT TRAYS for storing canisters and pollutants TECHNICAL CHARACTERISTICS : FRAME Bottle-profile uprights 50×50 mm – 1.5 mm thick Double perforations on the front every 50 mm Galvanised footplates 110×60 mm to be bolted onto the base of the uprights Galvanised “C” profile horizontal and diagonal braces 25×15 mm to be bolted on the uprights BEAMS Step beam 65×36 with welded connecting parts with 3 location points Optional safety pin for locking the beam in place on the frame upright SHELVES Mesh shelves, mesh 100×50 mm, wire diameter 5 mm, electrozinc finish. MESH PANELS Back and side walls, doors and roof in 50×50 mm welded mesh Lockable doors CONTAINMENT TRAY Height 260 mm – depth 800 mm Capacity 375 litres
