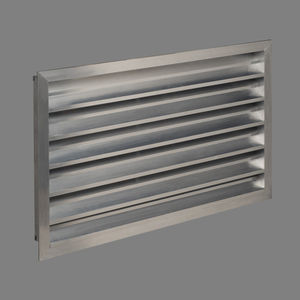

The DMT-X series grilles are designed to take in air from the exterior or
to expel used air.
The fixed blades, 25 mm pitch, are designed to prevent rain penetration.
They are very strongly built and resistant to aggressive climatic conditions,
for outdoor installation.
CLASSIFICATION
DMT-X Grilles with blades fixed at 45º
for industrial or external use, parallel to
the longer side.
EMT-X Grilles with blades fixed at 45º for
industrial or external use, parallel to the
shorter side.
MATERIAL
DMT-X Extruded aluminium grilles.
All the grilles are provided with a seal on
the back of the frame in order that the
perimeter in contact with walls, ceiling,
ducts, etc... is airtight.
ADDITIONAL ACCESSORIES
MLL Galvanised mesh of 13x13 fixed to
the grille.
PFT Filter box made in galvanised steel,
with mesh and filter included (K/8 EN
779 G3).
The grille is held in place by threaded
knobs.
FIXING SYSTEMS
(T) The grille is fixed in place with screws.
(S) The grille is fixed in place with clips
(standard supply).
It requires the CM mounting frame.
When assembling with the metallic frame,
measures H and L increase 8 mm.
(P) Sidepieces to fix in place.
1) The filter box is fixed in place with
screws or sidepieces. The grille is held
to the PFT by threaded knobs
FINISHES
AA Anodised in matt silver.
RAL… Lacquer in other colours (RAL
specifications).
