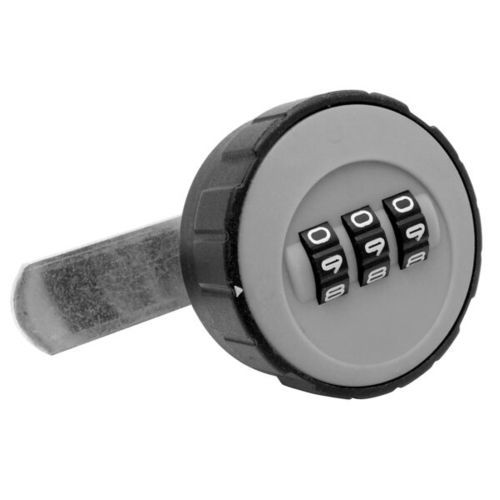

A compact 3 – digit mechanical combination lock A151 available with a robust plastic lock body.
LOCK DESCRIPTION
With simple code changes and other code functions, this lock is ideal for numerous applications such as Enclosures and Metal and Wooden Office Furniture and eliminates the need for a key.
STANDARD FEATURES
Number of codes: 1,000
Standard finish: Plastic (PA6 30GF) – Face grey/Housing black
Cam fixing: self-tapping torx screw
Lock fixing: nut (maximum panel thickness 12mm)
Standard piercing hole: 19.1mm x 16.1mm
Cam thickness: 2 and 3mm
Right-hinged doors only
Code changeable
For cam piercing nr. 7
