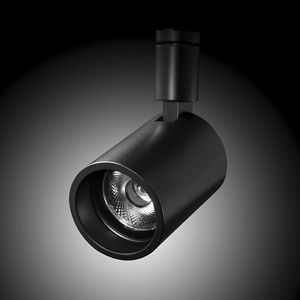

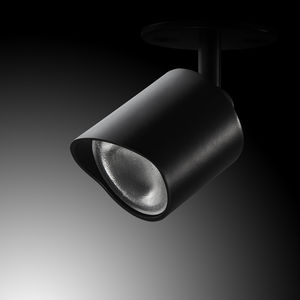

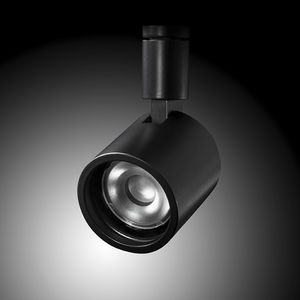

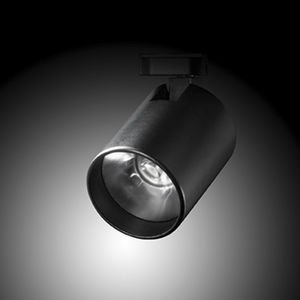

The Spot C5 is an articulated mini projector specifically developed for lighting precision. It comprises a light emitting power diode (LED) for an interior lighting quality of unmatched performance and reliability.. This fixture is the large version of the Spot C projector from the « Spots and Projectors » product line. Several models are available to achieve the desired lighting features.
OPTICAL
PMMA 90% efficiency lens
Bining Luminous Flux : 300 lumens for 6°, 900 lumens for 18°/28°/34°
Color Temperature: 2700K, 3000K, 3500K, 4000K (2 to 3 Macadam steps).
Service Range: 70% of nominal flux after 50000 hours.
Color Rendering Index : CRI 90
ELECTRICAL
3W to 10W Power LED.
Constant power supply current from 700mA (for 18°,28°,34°) & 1.4A (6°)
Supply connection : Polarised output connectors.
Electrical load 10W max, excluding supply.
Electrical Classification : Class III SELV device
MECHANICAL
Weight : 152gr
Articulating base, patented magnetic ball joint.
Two mounting screws on hook.
PMMA lens and window, O-ring, aluminum MPCB.
Operating temperature: -5° +40°.
ROHS components.
Interior use only.
