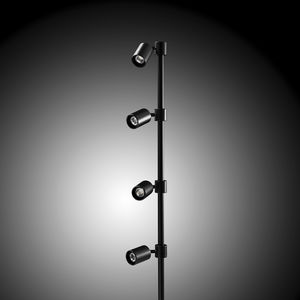

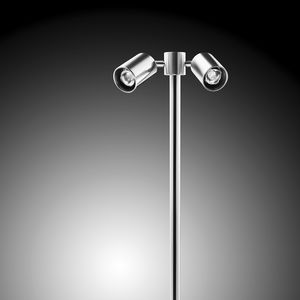

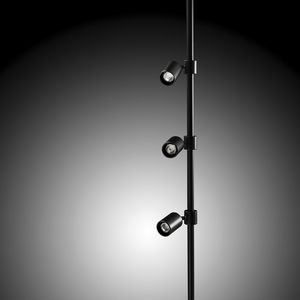

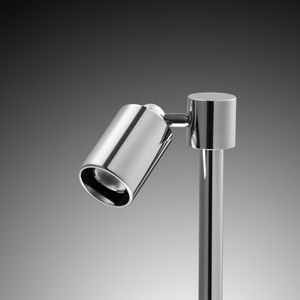

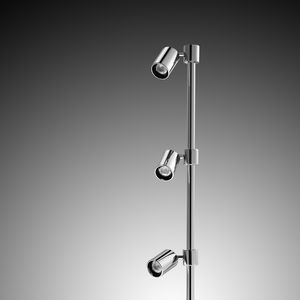

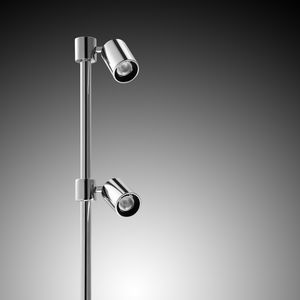

The Micro Mast is a mast with a miniature articulated projector developed for precision lighting. Equipped with a light emitting diode (LED), it yields an unmatched lighting quality and reliability. The combination of excellent performance, miniaturization, and discreet design allows it to be easily integrated into showcases, display furniture, and other small spaces. Several models are available to achieve the desired lighting features.
OPTICAL
PMMA acrylic lens, efficiency ~90 %.
Luminous flux according to Bining : from 120 to 150 lumens to 500 mA.
Color Temperature: 2700 K to 5000 K.
Service Range : 70 % of nominal flux after 25 000 hours.
Color Rendering Index: CRI 90
ELECTRICAL
1.5W Power LED.
Supply current from 0 to 500 mA, or +/- 3V Bining.
Supply connection : polarised output wires.
Electrical load 1.5W max, excluding supply.
Electrical Classification : Class III SELV device.
MECHANICAL
Mast : diameter 5mm, standard height and « to order» by request.
Orientation : horizontal 320° & vertical 120°.
Horizontal locking adjustment by tightening screw cover.
Operating temperature : -5° +40°
ROHS components.
Interior use only.
SPECIFICITIES
Electrolytic treatment possible.
3 year guarantee.
