Disabled lifting platform Elevex

for buildingprofessionaloutdoor

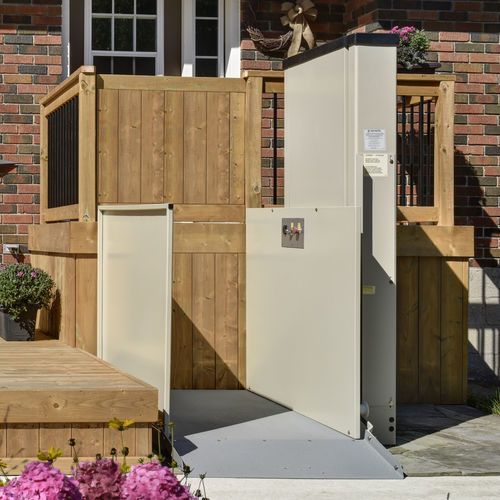

Robust Designed especially for outdoor installation Simplicity Simple spindle mechanism for trouble-free operation Efficiency Cost-effective and quick to assemble The Elevex platform lift is a simple and cost-effective solution for overcoming height differences of up to 1829 mm. As a hard-working, low-maintenance accessibility solution that sets the standard for residential wheelchair lifts, this ruggedly constructed lift has been proven unbeatable in both indoor and outdoor applications. The freestanding drive tower and its low clearance height allow for space-saving installation. The lift is quick to install and easy to maintain and is characterised by its robust design. Key features are: •Lifting height up to 1829 mm •Very robust outdoor lift •Free standing drive tower •Attachment only to the foundation •Simple and quick assembly •Optionally with door at the upper landing Lifting height: Elevex 1: 1219 mm Elevex 2: 1829 mm Loading capacity: 340 kg Drive system: ACME Screw drive Speed: 0,04 m/s Power supply: 1 x 230 V / 50-60 Hz
