Pole vault jump standard A.07.05

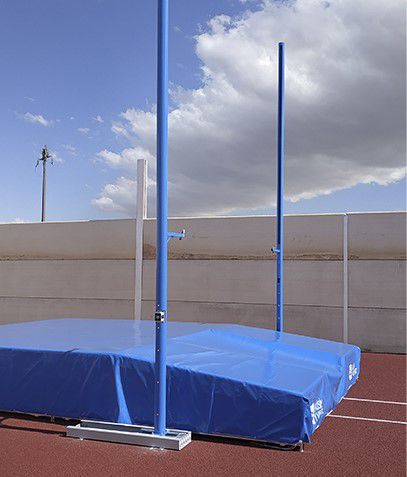

Competition pole vault stands, designed and manufactured in compliance with WA international athletics regulations. Tubes are manufactured with a 125 mm round section extruded aluminium profile, and are fixed to a mobile metal base with a wheel system. The crossbar supports are telescopic and adjustable in height. Allows measuring from a minimum length of 550 mm to a maximum length of 925 mm. Regulation in height between 2.4 m (minimum height) and 6.4 m (maximum height). The crossbar is placed at the desired height by means of a winch system and incudes a metal tape measure to indicate the height of the crossbar at all times. The crossbar may be moved in the direction of the landing area from the zero line to a maximum of 80 cm, by moving the posts through the 1400 mm length rails fixed to the ground.
