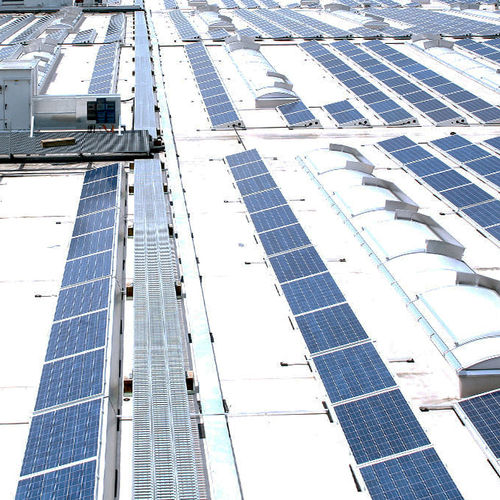

Photovoltaïc installation rooflight S​ ENERGYLINE

flat roofsmoke controlfor ventilation

The LAMILUX Continuous Rooflight S​ energyline combines the benefits of the shed roof version of our Continuous Rooflight S (30°/60° incline) with those of a flat roof photovoltaic system. With this skylight system we guarantee permanent energy cost savings! Combination of skylight and green energy generation through sophisticated photovoltaic modules Northern light shed roof with 30° incline of the PV, opaque rear of the shed roof and 60° incline in the northern light side: This allows you to take advantage of the optimum sun angle of 30° (other dimensions available on request) The world’s first Continuous Rooflight with certified watertightness in heavy rain and during storms (DRI 3.0 m/s²) The use of cutting-edge materials ensures that the product is completely thermally separated to meet the highest energy efficiency standards for modern industrial and administrative buildings Due to innovative system components, the Continuous Rooflight can withstand the strongest wind and snow loads Wide range of glazing options Mullion and transom construction and flap systems are thermally separated Isothermal Load Converter (ITL) – a component designed to incorporate highly thermally insulating materials in the base profile Northern light side: Composite glazing adapted to building-specific energetic requirements (panel thickness between 10mm and 32mm) with low heat transmission coefficients of up to 1.2 W/(m²K) Energy-efficient, natural ventilation Life cycle assessment made easy: There is a comprehensive Environmental Product Declaration for the Continuous Rooflight S in accordance with ISO EN 15804
