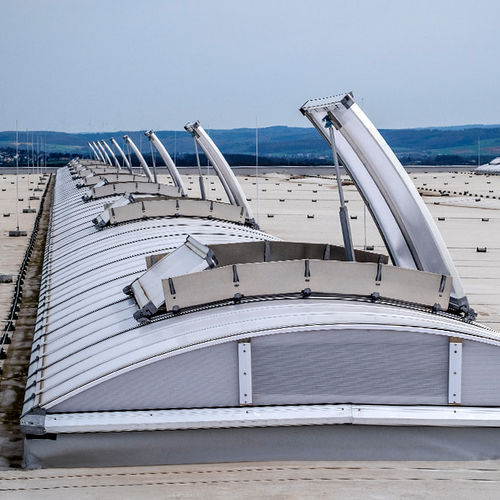

Passive house rooflight B

smoke controlfor building renovationwith skylight frame

The world’s first Passivhaus certified Continuous Rooflight system Passivhaus efficiency class – phB Heat transmission coefficient (USK): 0.95 W/(m²K) Overall system with flawless isothermal lines and free of thermal bridges Thermal performance values calculated based on DIN EN ISO 10077-1 and 10077-2 Life cycle assessment made easy: There is a comprehensive Environmental Product Declaration for the Continuous Rooflight B Passivhaus​ in accordance with ISO 14025 and EN 15804 (EPD - modules A1 - D) The world’s first Continuous Rooflight with certified watertightness in heavy rain and during storms (DRI 3,0 m²/s) Based on European Technical Approval ETA-09-0374 Complies with European standards regarding snow and wind loads Thermal protection properties tested in accordance with ETAG 010 Watertightness tested in accordance with ETAG 010 Burn-through safety verified in accordance with DIN 18234-3 Melt-out verified in accordance with DIN 18230-1 Permanent fall-through protection grid Fall-through protection grid Permanent fall-through proof in line with employer’s liability insurance association approval certificate For clear widths between 1.00 and 6.00 Can be mounted to curved sheets Sun protection Metal screen in any RAL colour Featuring a deciduous tree design for a natural shading effect Permanent fall-through protection Protection against hail and UV light Colouring LAMILUX steel sheet upstands and all visible aluminium profiles can be custom coated in RAL colours on request Smoke seal Smoke-tight, non-flammable A1 Structure: 2mm aluminium / 10mm PC / 2mm aluminium
