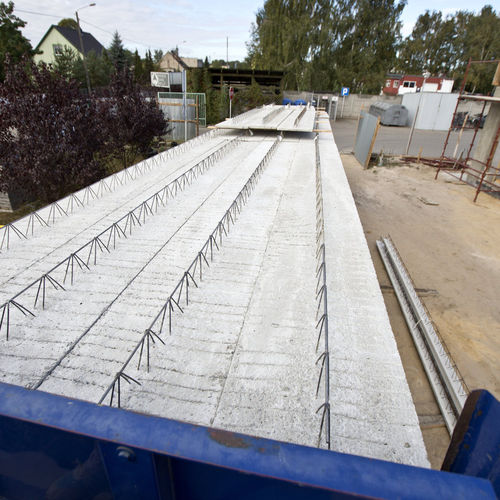

Product description The VECTOR combined ribbed floor system is a new type of floor that provides advantages of beam and hollow-block floor systems (e.g. Teriva, FERT, Porotherm) and the Filigran-type floors, with the disadvantages eliminated at the same time. It is characterised by a low cost, a short erection time and relatively high parameters of loading capacity and acoustic insulation performance. The VECTOR combined ribbed floor system is composed of 4 cm high and 60 cm wide panels fitted with appropriate reinforcement in the form of a centrally embedded steel truss (axially along the entire panel length). The truss facilitates erection of panels on site, and when covered with concrete topping, it reinforces the joint with the panel. In addition, on its upper surface, the panel is provided with the so-called bonding layer that reinforces the joint between layers. This type of floor requires no individual designs for each room, in which it is intended for use. Load-free weight of the VECTOR panels enables transporting up to 250 m2 of the floor system within just a single road transport operation. It also requires no heavy machinery during erection, as an HDS-equipped vehicle is sufficient. The number of elements necessary for construction using this type of floor has been considerably reduced (in particular, there are no hollow blocks and separating ribs as is the case of the Teriva type floor systems, or additional reinforcement typical for the Filigran-type floor systems), which considerably reduces erection time. It is only necessary to arrange installation supports at a distance of 1.8 m.
