Light dimmer switch DIGITAL

rotaryautomaticsurface-mount

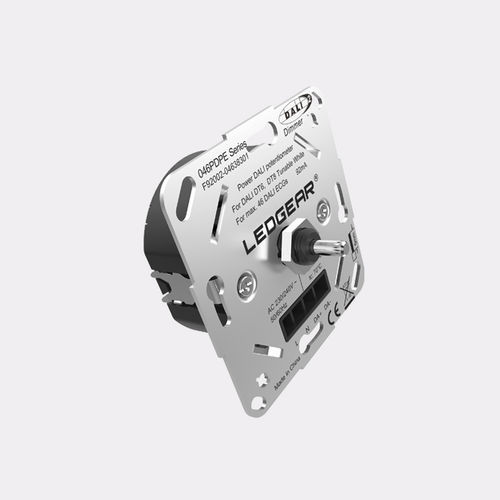

This DALI MCU(Microcontroller) with DALI output for dimming of luminaires or transformers with DALI interface. Flush-mounted Rotary Dimmer for DALI DT6 and DT8 Tunable White applications, integrated DALI bus power supply of 92mA which can power DALI bus while connected to AC mains. While not connected to AC mains, the DALI rotary dimmer can be powered by DALI bus. Broadcast control up to 46 DALI devices from one dimmer, and possible to extend installation with up to 4 dimmers(for multiple control locations) and 92 DALI-devices. Supplied without knob and front frame but compatible with most of the European frames, 5-year warranty. Dimming solutions are easy and reliable, no DALI addressing required. Switch-on with brightness thanks for the permanently. Double click enables users to switch between dimming and tuning(for DT8 only). Features · Works with DALI-2 DT6 and DALI DT8 Tc(Tunable White) ECGs · 0.1% -100% dimming range · 2000K - 10000K color temperature tuning range with DALI DT8 · Switch-on with last brightness or saved switch-on brightness · Switch-on brightness can be saved permanently · 92mA integrated DALI bus power supply when connected to AC mains · Each DALI dimmer can control up to 46 DALI ECGs · Control up to 92 DALI ECGs with maximum 2 active DALI MCUs powered by AC mains and 2 passive MCUs powered by DALI bus · Automatic synchronization between the control locations · EcoDesign Directive (EU) 2019/2020 compliant · Permanent memory dimming & tuning · Working Ta=0°C ~ +50°C · Five-year factory guarantee and lifetime technical support
