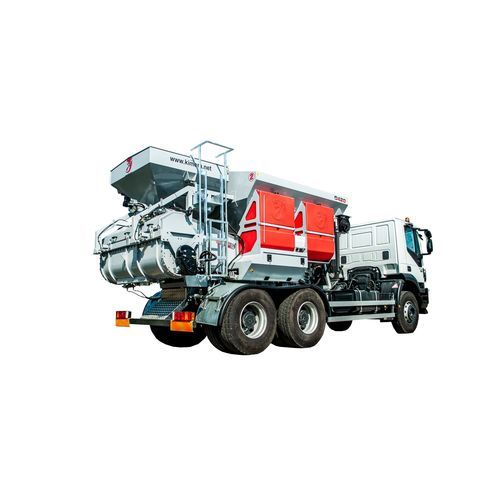

Mobile concrete mixing plant D420

screw

The Kimera D420 mobile batching plant is designed and built for the production and distribution of concrete, cement mixtures, mortars, cement mortars. Before starting the production cycle, the operator must set the mix design, the quantity to be produced and the production speed on the LCD screen. Then the operator manages the system from the control panel or from the remote control (optional). At the start of the cycle, the elements (water, cement, inert 1, inert 2, additives and any other additional elements) are automatically transported and fall into the first screw, which mixes and transported to the second screw. This auger can be tilted vertically to unload from a higher position, and transports and mixes the concrete to the unloading point. HOPPER 1 CAPACITY : 2.66 m³ – 3.5 yd³ HOPPER 2 CAPACITY : 2.76 m³ – 3.6 yd³ CEMENT CAPACITY : 1500 kg – 3306 lb WATER CAPACITY : 900 l – 238 gal MAX AGGREGATE SIZE : 32 mm – 1.25 In HEIGHT : 2342 mm – 7.7 ft LENGTH : 5117 mm – 16.8 ft WIDTH : 2509 mm – 8.2 ft WEIGHT* :3400 kg – 7495 lb
