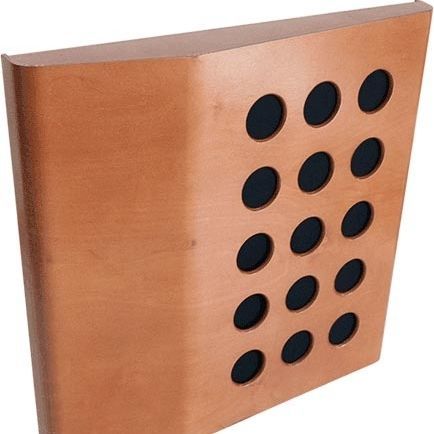

Acoustic wall panel ARCHTRAP®

plywoodbirchsquare

The ARCHTRAP is a flat-shaped acoustic absorbent panel, made with birch plywood on a calculated absorbent box. This panel is meant to absorb mid-low range frequencies. Its shape is the same as the ATP™ Snowsorb and both can be used together to achieve numerous sound absorption solutions. We can make several different aesthetic effects by rotating the panels 90º degrees and positioning them according to one's taste and to the room requirements. As this panel is made of varnished birch plywood, it also provides some scattering diffusion. When using multiple pieces jointly, the angle of incidence never is too convergent which leads to a homogeneous sound scattering. This piece is available in various wood finishings or regular colours, thus allowing an appropriate background for each space. The mounting process is rather easy by simply using the docking accessories' screws that are supplied. Manufactured in birch plywood NRC: 0.63/m2 Average diffusion: 0.48/m2 [>500Hz;<5KHz] Fire-resistance: Euroclass B-s2,d0 (similar to old M1) Recyclable Installation: accessories included Several colours available.
