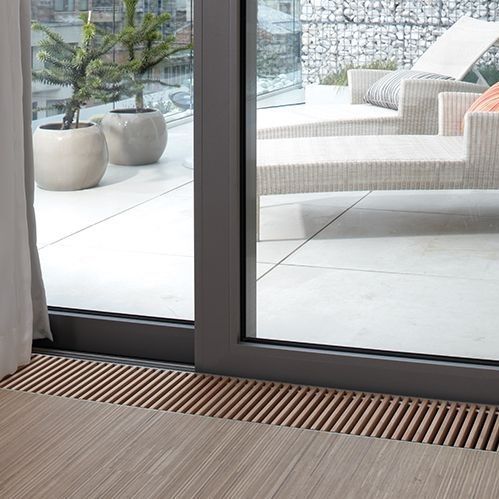

Hot water convector MINI CANAL HYBRID

contemporarymetalfloor

Same size, 3 times the heating output for low water temperatures. Height 14 cm. High output at low water temperatures For newbuild and renovation of commercial and public buildings fully automatic fixed speed operation driven by the water temperature sensor A range of grilles for every interior Low-H2O technology with super conductive and ultra fast heat exchanger for low energy consumption and maximum heat emission Options Cover plate Fibreboard, thickness 22 mm. Protects the Mini Canal against contamination and damaging during construction works. Acoustic strip For aluminium and wood grilles (not for stainless steel). Black adhesive rubber strip, thickness 0.5 mm. To avoid contact noises. Order the number of rolls required according to the circumference of the frame: (B + L) x 2. Base insulation In dark grey extruded EPDM, thickness 5 mm. (Not available separately!!) Also to avoid transfer of noise when used on upper storeys. 3-Sided insulation In dark grey extruded EPDM, thickness 5 mm. (Not available separately!) Height control Simple height control for uneven subfloors. Provided with acoustic decoupling. The height control option is always provided with extra adjusting screws in order to install the duct flat against the window frame. Standard pre-mounted Jaga Dynamic Product Controller (JDPC) Multifunctional controller for dynamic heating and cooling devices provided with one or more built-in fans. The Jaga Dynamic Product Controller is pre-configured and assembled inside the device Indication of operating mode by LED's Control with touch screen and water temperature sensor, preset and mounted in the device by Jaga. power supply voltage 12 VDC Control:
