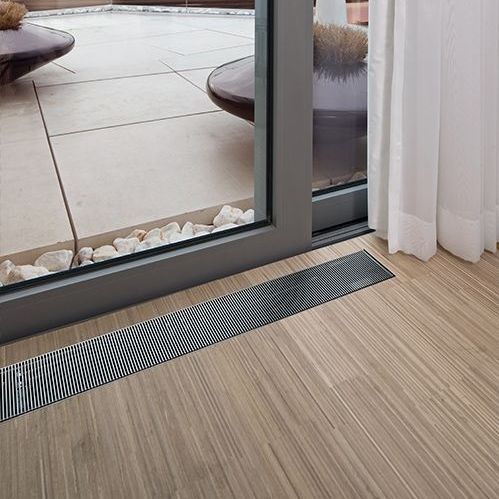

Electric convector MICRO CANAL

hot water751 w...1000 w1500 w

Maximum warmth, minimum dimensions Only 6 cm high and 13 cm wide Minimalistic aesthetics and architectural freedom with a power that breaks all temperature records By using the latest EC motors, up to 50% less electricity consumption block (s) in polyethylene block (s) in polyethylene Stainless steel air filter Dynamic heat exchanger Inner casing Outer casing Connection Anchorage / Height control MAX. TIGHTENING TORQUE Precision metal tube: Soft copper: 45-55 Nm Semi-hard copper: 60-80 Nm Mild steel: 60-70 Nm Synthetic: 30-40 Nm RPE/ALU: 20-30 Nm Power supply DIN-rail montage Component power For DIN-rail- or wall mounting Conformity: UL60950 / UL508 / IEC 60950-1 / TUV EN61558-2-16 / Class 2 Output voltage 24 VDC Input voltage 100 - 240 VAC Screw connection LED indicator MAXIMUM CABLE LENGTH Maximum cable length in function of the number of devices. Component power Waterproof power supply 24 VDC/30 Watt with waterproof cable gland Conformity: UL1310 - EN 60950-1 / Class 2 Output voltage 24 VDC Input voltage 100 - 240 VAC Dimensions L 14.5 x B 4.5 x H 3.0 cm Valve unit Length 35 cm connection set with thermostatic valve, lockshield and thermoelectric drive 24 VDC Outer casing with height adjustment Inner casing with stainless steel grille support stainless steel grille, natural coloured or lacquered protective block (s) Housing EMPTY HOUSING To fill open spaces for a continuous installation Outer casing with height adjustment Inner casing with stainless steel grille support stainless steel grille, natural coloured or lacquered protective block (s) 2 head pieces
