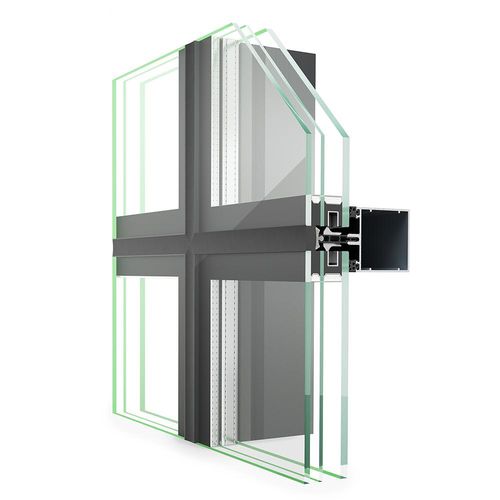

Panel curtain wall TRIGON FS 060 SG

glassmetal and glasswith integrated insulation

-Elevation width 60 mm -Maximum pane size 3000 mm x 5000 mm -Thermal insulation Uf up to 0.76 W/m²K -Burglar resistance RC1N, RC2N, RC2 and RC3 -Airborne sound insulation up to 45 dB Design All-glass façade construction with 22 mm silicone weather joint for vertical or polygonal curtain walls European Technical Approval ETA-22/0339 Maximum pane size 3000 mm x 5000 mm Easy glazing assembly with patented self-clamping toggle Elevation width Mullion and transom profile elevation width 60 mm Profile depth Depending on static requirements and level from 27 mm to 250 mm Insulation variants In order to meet different thermal requirements, there are two different equipment variants: ECO based on insulators made of ABS enables filling thicknesses from 32 to 68 mm offers thermal insulation with Uf values from 1.0 W/m²K, including toggle influence
