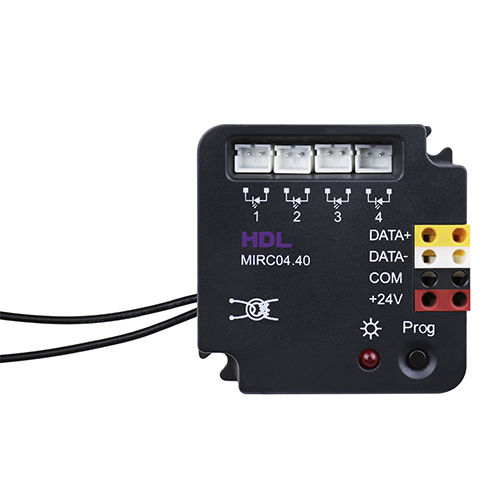

Home automation system control module HDL-MIRC04.40

lightingfor air conditioningaudio

4CH IR Emitter with Current Detection can download codes saved in HDL Buspro Setup Tool, or codes uploaded to the IR Code Learner. HDL-MIRC04.40 can then transmit the IR codes to control IR devices, for example, air conditioner, TV, fan, projector, Set-Top Box, DVD etc. It also supports current detection for devices. ■ Current detection: Detect if the device is power-on or power-off. ■ 4 IR emission channels drive the transmitting tube directly. ■ Supports 24 devices and 100 IR codes. ■ Built-in IR code library holds IR codes from common appliance manufactures. ■ Codes that are not presented in the IR library can be uploaded via the IR learner. ■ Sequence function, to call the sequence by universal switch, the UV switch number is 201-208. ■ Supports up to 99 UV switches. ■ Supports online update via HDL Buspro Setup Tool. ■ Supports easy programming. Basic Parameters Working voltage 12~30V DC Working current 30mA/24V DC Sending carrier wave frequency 38kHz IR control distance 5m External Environment Working temperature -5℃~45℃ Working relative humidity ≤90% Storage temperature -20℃~60℃ Storage relative humidity ≤93% Specifications Dimensions 45mm×45mm×16mm Net weight 58g Housing material Flame retardant ABS Installation 86×86 wall box, Screw fix installation Protection rating (Compliant with EN 60529) IP20
