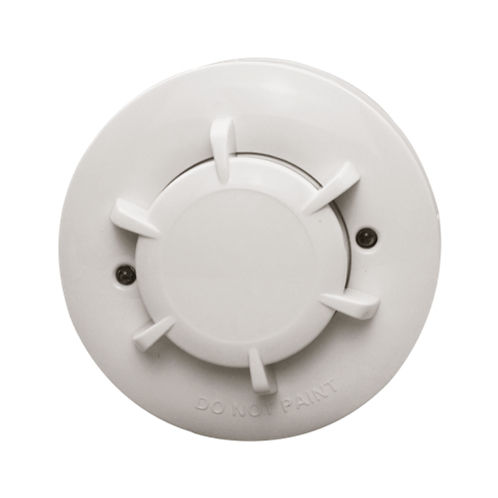

This product named Photoelectric smoke detector(hereinafter called detector) detects the smoke by a couple of infrared diodes. The principle of detecting is granule in the smoke can reflect infrared light.
●STRONG ADAPTABILITY FOR CIRCUMSTANCE
●SMT DESIGN, HIGH STABILITY
●10-30VDC WIDE VOLTAGE OPERATING RANGE
●LOW STANDBY CUR R ENT
●POWER SUPPLY NON-POLARIZED INPUT
●TWINLED FOR 360°VISUAL
●FL ASHING LED POWER INDICATOR
●REMOTE LED INDICATOR OUTPUT(2- WIRE)
●METAL SHIELD, ANTI-ELECTROMAGNETIC INTERFER ENCE
Working voltage: DC10 ~ 30V
Static current: 4mA (Relay normal open), 13mA (relay normal close)
Alarm current: 19mA (relay normal open), 9mA (relay normal close)
Alarm indication: red LED
Smoke sensitivity: 0.2dB / m (± 0.1dB / m)
Working Temperature : -10 ℃ ~ + 50 ℃
Environmental humidity:95% RH
Alarm output: relay output (normal open / normal closel)
Relay contact capacity: 0.1A, DC28V
Protected area: 60-80 square meters
