Home automation system switch actuator HDL-M/R16.16.1

KNXDIN railhome

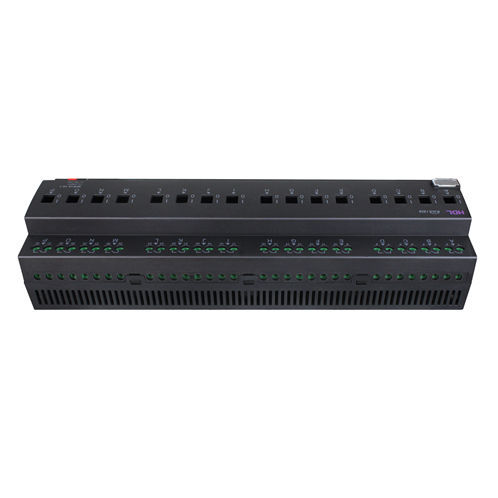

KNX 16CH 16A High Power Switch Actuator （HDL/KNX-EIB Bus relay series products） are fully compliant with European safety standards and protocols for High-power switching KNX equipment, internal use of 50A High-current magnetic relay, zero power consumption and long life are some of the key features. ■ The switch Actuators can drive for 4, 8 ,12and 16 channels loads. ■ The maximum 16 A on every output channel, also can manually operation. ■ The module functions: Statistical ON time, Status response, Status Recovery, Staircase light, Flashing, ON/OFF delay, Protection delay, Scene Control, Threshold Function, Curtain Control and so on. ■ Logic Function: AND, OR, XOR, Gate. ■ Heating Function: PWM(1bit/1byte) control output. Electrical Parameters Working Voltage：21~30VDC Communication：KNX/EIB DC current ：＜15mA KNX terminals：KNX Bus Terminal – 0.6 – 0.8mm Diameter single-core copper cable Rated switch voltage：250V AC/440VAC Supply Rated switch current：16A lighting load, Max inrush 500A Operation times：>1000000 Output Terminals：Line In, Line Out for each channel 2.5-4m㎡ Output Current：16CH/16A capacity：<300μf Environmental Conditions Working temperature：-5℃~45℃ Working relative Humidity：Up to 90% Storage temperature：-25℃~+55℃ Storage relative humidity：Up to 93% Product information Dimensions：H90mm x W288mm x D 66mm Housing material：Flame-retarded nylon IP class：IP 20
