Home automation system control module HDL-MHD02R18U.232

lightingfor air conditioningfor chillers

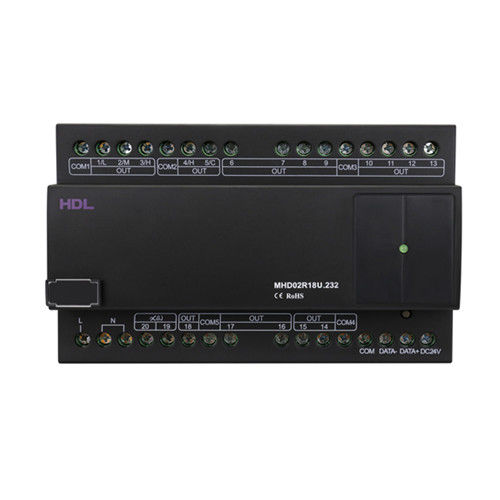

20CH Hotel Room Mix Control Module is a multifunction control module with 20 channel outputs. It supports relay control outputs and silicon-controlled rectifier outputs. ■ Channel 1 to 5 are 5A relay outputs, and also can be used for controlling AC, for example, cooling/heating switch and fan speed control. (Channel 1, 2 and 3 are connected to the Low, Medium and High fan speeds of AC, Channel 4 and 5 are connected to the Heating Mode and Cooling Mode of AC). ■ Channel 6 to 13 are relay outputs. Each channel outputs 5A current. The load types are incandescent lamp, halogen lamp, low-voltage halogen lamp, LED lights. ■ Channel 14 to 18 are relay outputs. Each channel outputs 10A current. The load types are incandescent lamp, halogen lamp, low-voltage halogen lamp, LED lights. ■ Channel 19 to 20 are silicon-controlled rectifier outputs. Each channel outputs 1A current. ■ Communication: Inner Buspro. Basic Parameters Working voltage ：15~30V DC Working current ：350mA/24V DC Input voltage ：AC100~240V, 50/60Hz Relay output ：5A/10A resistive loads Dimming output ：1A silicon-controlled rectifier outputs Communication ：Inner Buspro External Environment Working temperature ：-5℃~45℃ Working relative humidity ：≤90% Storage temperature ：-20℃~60℃ Storage relative humidity ：≤93% Specifications Dimensions ：144mm×90mm×64mm Net weight ：564g Housing material ：Nylon, PC Installation：35mm DIN rail installation Protection rating (Compliant with EN 60529) ：IP20
