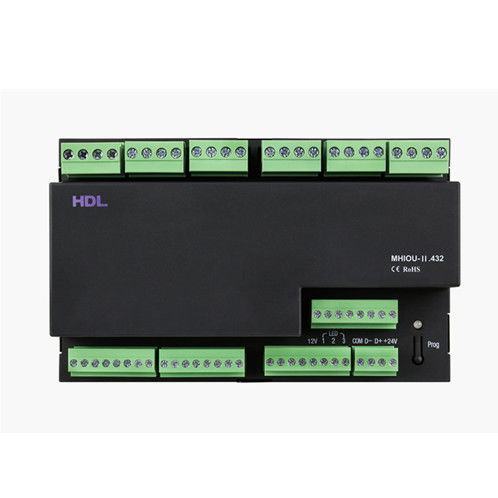

Home automation system control unit HDL-MHIOU-II.432

HDL Bus Enable Hotel I/O Module supports functions of MOSFET dimming, relay, curtain control, dry contact, doorbell control and LED output. The three service status indicators of the indoor doorbell can be controlled by the universal switch of the panel. The output channel parameters are set by HDL Buspro Setup Tool, and curtains, lamps, exhaust fans, etc. can be set as controlled targets. After setting, the targets can be controlled via the panel. OUTPUTS ■ Supports security setting, area setting and scene setting. ■ Channel 1 and 2 are trailing edge dimming outputs, with up to totally 1.6A current output. ■ Channel 3 to 12 are relay outputs, each channel is 5A. ■ Channel 9 and 10, 11 and 12 can be used for curtain control. INPUTS ■ 14-channel dry contact input. ■ 3-channel indoor doorbell control and 3-channel indicator output. ■ 1-channel outdoor door bell control and 3-channel indicator output. ■ 1-channel door bell relay control. Basic Parameters Working voltage 15~30V DC Working current 185mA/24V DC Input voltage AC100-240V（50/60Hz） Communication HDL Buspro External Environment Working temperature -5℃~45℃ Working relative humidity ≤90% Storage temperature -20℃~60℃ Storage relative humidity ≤93%
