Gateway interface module HDL-BUS DIN railfor home automation systemsKNX
Add to favorites
Compare this product
Characteristics
- Type
- gateway
- Other characteristics
- KNX, DIN rail, for home automation systems
Description

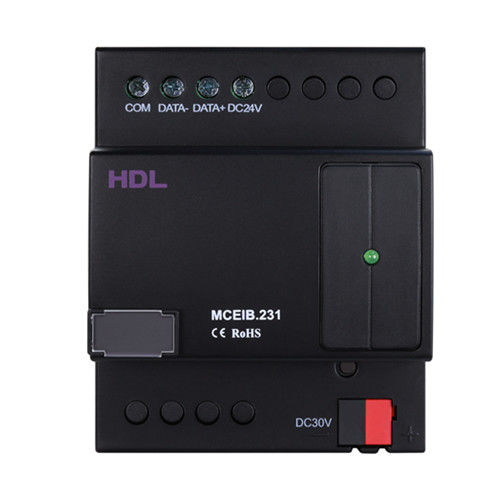

HDL-MCEIB.231 HDL-BUS and KNX-EIB Interface Converter is a gateway between HDL Buspro and KNX/EIB.
■ Two-way communication for HDL Buspro and KNX/EIB.
■ Various data point format supported.
■ Controls up to 254 targets
Basic Parameters
HDL Buspro working voltage 15~30V DC
HDL Buspro working current 5mA/24V DC
KNX/EIB working voltage 21~30V DC
KNX/EIB working current 6mA/30V DC
Communication HDL Buspro, KNX/EIB
Software programming HDL Buspro Setup Tool
External Environment
Working temperature -5℃~45℃
Working relative humidity ≤90%
Storage temperature -20℃~60℃
Storage relative humidity ≤93%
Specifications
Dimensions 72mm×90mm×64mm
Net weight 174g
Housing material Nylon, PC
Installation 35mm DIN rail installation
Protection rating (Compliant with EN 60529) IP20
