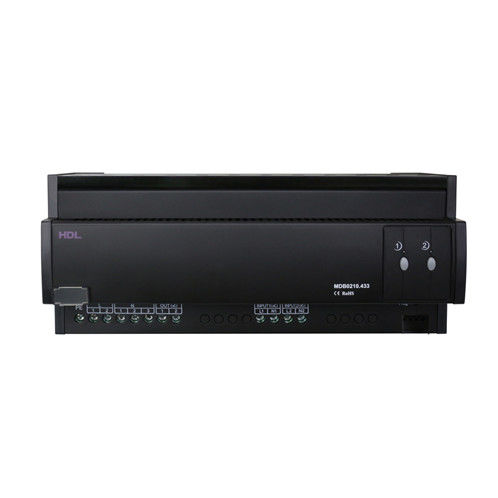

HDL-MDB0210.433 Mosfet power amplifier, work in conjunction with dimming module, used to increase the output current of the dimming module. It has 2 output channels and manual switch is available for each channel. And it has short circuit protection and over heat protection.
■ Mosfet dimming mode
■ It must work in conjunction with dimmer
■ Each output channel has LED status indicator and manual control switch
■ It has short circuit protection and over heat protection
■ When the temperature of the aluminum alloy radiator on the mosfet power amplifier reaches 80℃, the output power starts to decrease; when it reaches 85℃, stop to output power; when it goes down to 80℃, the output power starts to work again
■ Two output channels can be combined into one channel, the output current increase to 16A (The input is the first channel)
Electrical Parameters:
AC power input AC110/230V
Output channel 2CH,10A/CH
Maximum output channel
current in total
16A
Dimming mode Trailing edge
Environmental Conditions:
Working temperature -20℃~45℃
Working relative humidity Up to 90%
Storage temperature -20℃~+60℃
Storage relative humidity Up to 93%
