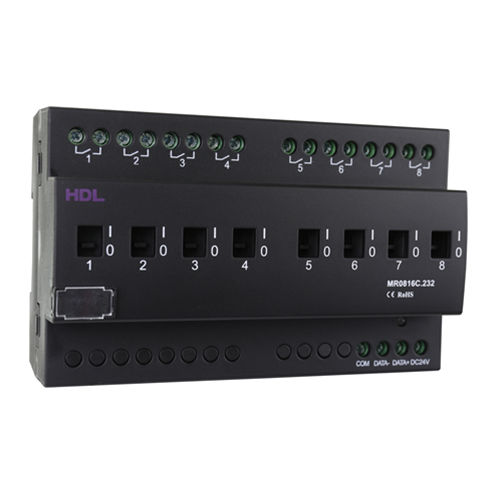

8CH 16A High Power Switch Actuator with Current Detection has 8 channels (16A for each channel) and 50A magnetic latching relay. With low power consumption and long lifetime, the module has manual control switches and supports scene and sequence control.
■ 8-channel relay output unit
■ Scene control and sequence control
■ Up to 8 separate zones
■ 16 scenes for each zone, scene running time up to 60 minutes
■ 2 sequences for each zone, up to 8 steps for each sequence
■ Light protection delay for each channel (0-60 minutes)
■ Mass turn-on delay for each channel(0-25 seconds)
■ Manual switch for each channel
■ Stair lamp function of the channel settable
■ Channel current, used time of load and alarm status of each channel can be detected.
■ Selected scene or scene before power off automatically activated when device restarts
■ Specified scene or no operation for options when power off
■ HDL Buspro communication
■ Supports online upgrade
Basic Parameters
Working voltage: 24~30V DC
Working current: 35mA/24V DC
Input voltage: 120V/240V AC (50/60Hz)
Output channel: 8CH/16A
Relay: 50A Magnetic latching relay
Maximum current of each channel:16A
Electronic life time of relay: >60000 (Resistance load)
Protection: Connect a breaker in each channel
External Environment
Working temperature: -5℃~45℃
Working relative humidity: ≤90%
Storage temperature: -20℃~60℃
Storage relative humidity: ≤93%
