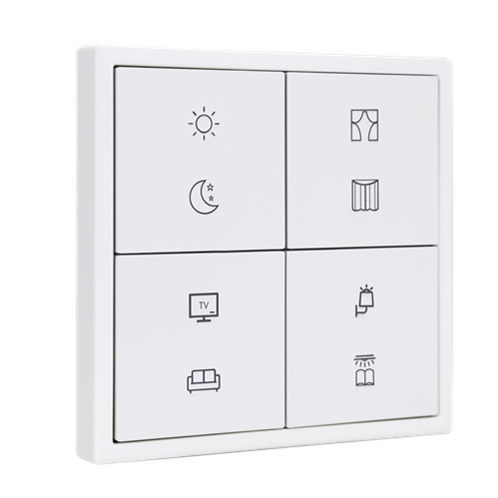

Home automation system control panel Tile

for multimedia equipmentfor lightingwindow

Tile series Button Panel 2.0 contains 1/2/4-button panels, both plastic and metal versions. Icons and text of each button supports laser labelling. With built-in RGB backlight for each pushbutton, the color and brightness level can be set by HDL Buspro Setup Tool or manually set on the panel. The panels support controls of lighting, curtains, scenes, music, etc. ■ Built-in temperature sensor ■ Built-in proximity sensor (maximum sensing distance: 20~30cm) The 1 Button Panel A/B in metal version (M/PT1RA.1, M/PT1RB.1) do not support proximity sensing function. ■ Icons and text of each button support laser labelling. ■ Adjustable backlight brightness level via HDL Buspro Setup Tool or manual setting on the panel. ■ Button modes: Single on/off, Single on, Single off, Combination on, Combination off, Combination on/off, Double click/single on/off, Double click/combination on/off, Momentary, Short/long press, Short press/long momentary. ■ Control types: Scene, Sequence, Timer Switch, Universal Switch, Single Channel Lighting Control, Broadcast Scene, Broadcast Channel, Curtain Switch, GPRS Control, Panel Control, Security Mod ule, Music Control, General Control, etc. ■ Button lock function. ■ Online update via HDL Buspro Setup Tool. Basic Parameters Working voltage: 12~30V DC Working current : HDL-MP1B/TILE.48: 9.5mA/24V DC HDL-MP2S/TILE.48: 13.4mA/24V DC HDL-MP2B/TILE.48: 13.4mA/24V DC HDL-MP4S/TILE.48: 13.5mA/24V DC HDL-MP4B/TILE.48: 13.5mA/24V DC HDL-MP4B-A/TILE.48: 13.5mA/24V DC
